KA左接式:KA20010P-100AFL
特征

组合高度:115mm

底座宽度:200mm

额定转速:3000RPM

最大线速度:500mm/s

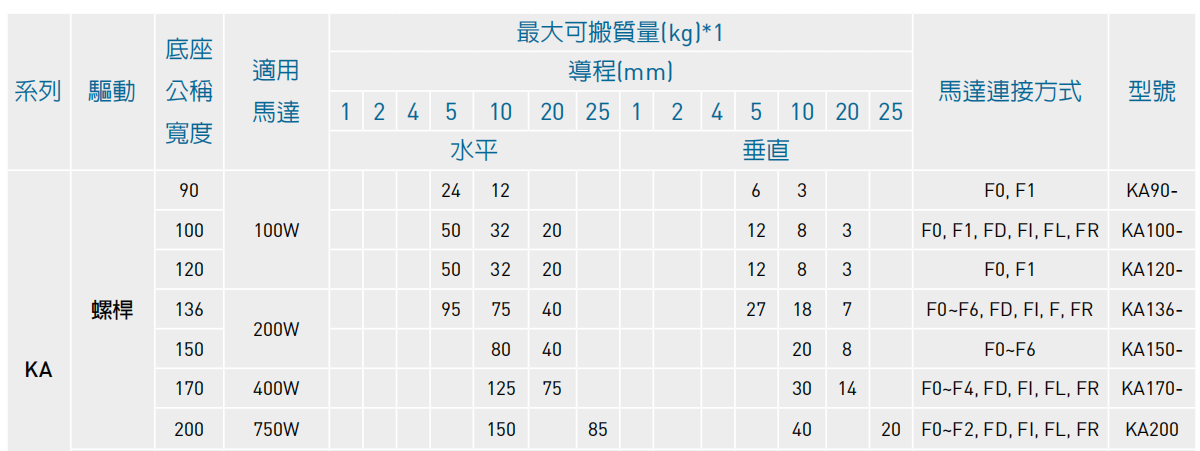

垂直最大负载:30-50KG

水平最大负载:150KG

一般c级精度:±0.01mm

精密P级精度:±0.005mm

  • 基本信息
  • 规格尺寸

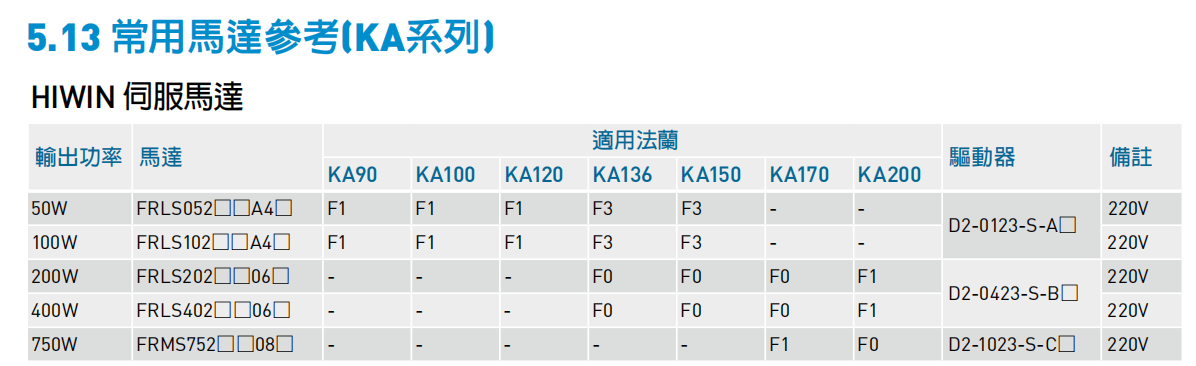

  • 配置/性能参数

    HIWIN上银单轴机器人

    HIWIN单轴机器人系利用多年来的制造技术与专业水准,配合自行研发生产的滚珠丝杆及直线导轨设计之模组,具有安装容易体积小,高精度等特点,产品种类规格多样化,适用于各类自动化设备。另可进一-步搭配HIWIN自主研发之高速度响应伺服电机及驱动器,提供您一站式完整的全模组解决方案。

    KA系列

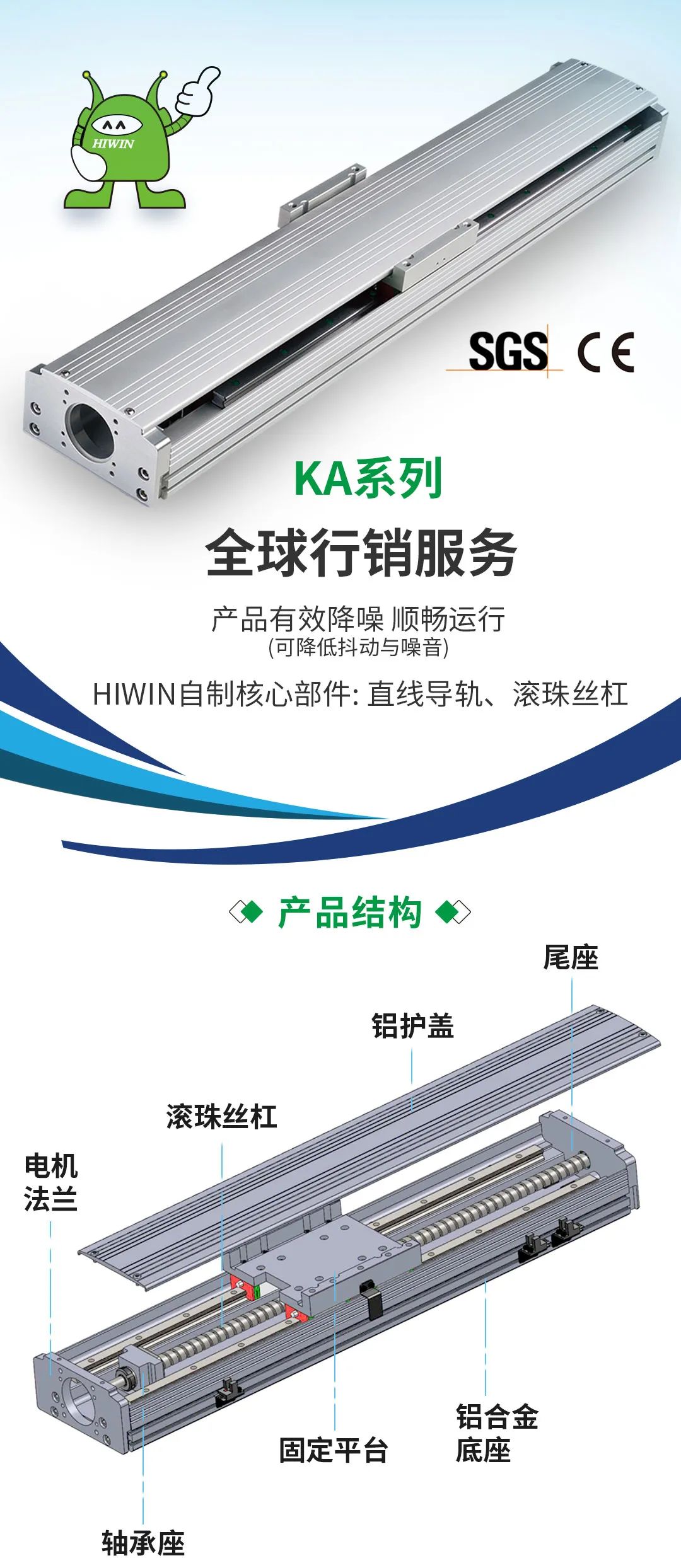

    全球行销服务.         产品有效降噪顺畅运行(可降低抖动与噪音)           HIWIN自制核心部件:直线导轨、滚珠丝杠

    特性

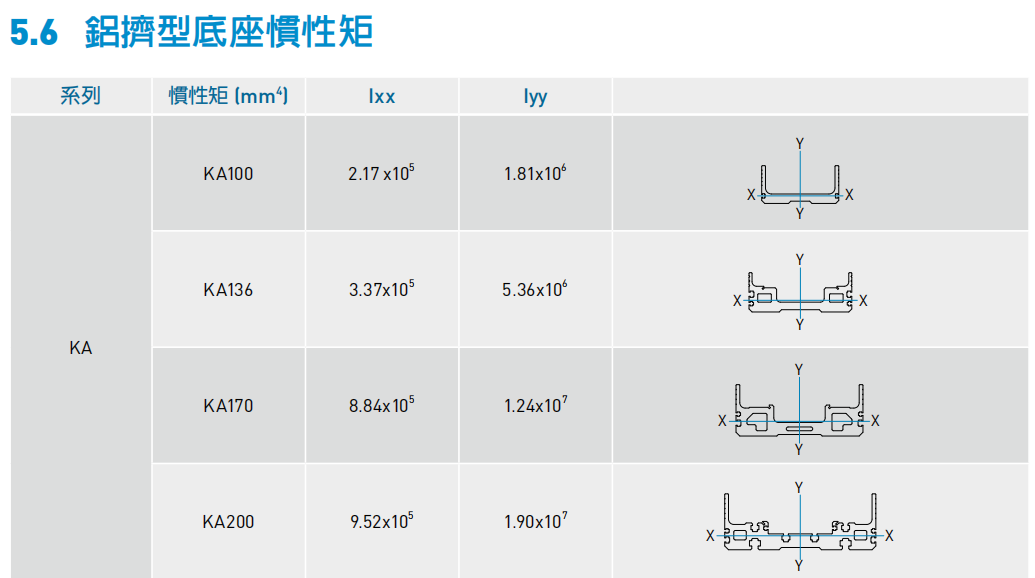

    ◎ 轻量高刚性铝挤型底座     ◎ 安装与维护容易

    ◎ 组装多样化                        ◎ 客制化设计

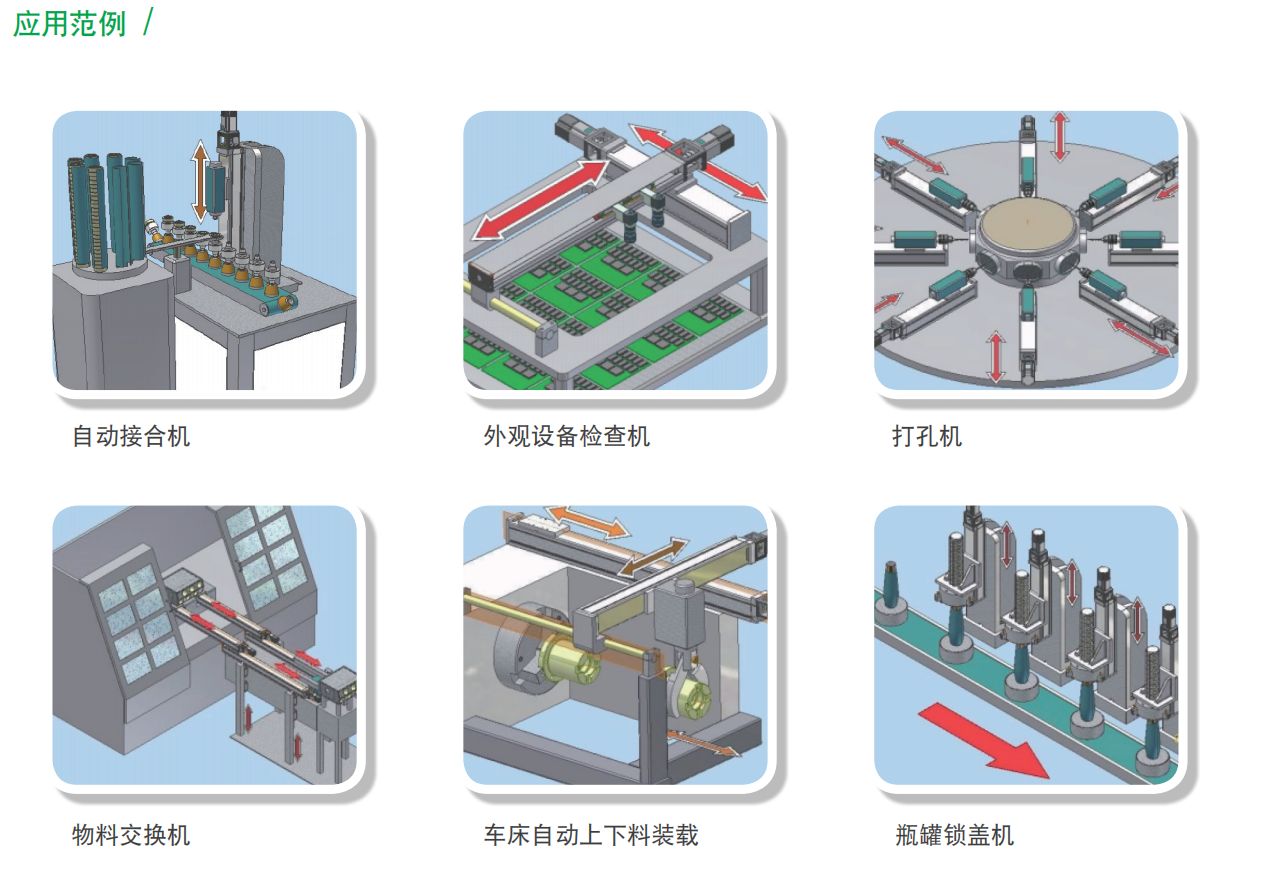

    适用在所有自动化产业应用领域,半导体、液晶面板、家电、医疗、汽车、包装、点胶机、焊接、切割、检测.组装.送料机构.FPD产业等。

    ◆适用产业◆

    高精密产业/自动化产业/半导体产业/光伏产业新能源产业/液晶面板产业/家电产业/医疗产业包装产业/点胶机产业/镭焊产业/切割产业印刷产业/检测产业



    KA200-A款-FL左接式型号
    C级精度 ±0.01mmP级精度 ±0.005mm
    10导程25导程10导程25导程
    KA20010C-100AFLKA20025C-100AFLKA20010P-100AFLKA20025P-100AFL
    KA20010C-150AFLKA20025C-150AFLKA20010P-150AFLKA20025P-150AFL
    KA20010C-200AFLKA20025C-200AFLKA20010P-200AFLKA20025P-200AFL
    KA20010C-250AFLKA20025C-250AFLKA20010P-250AFLKA20025P-250AFL
    KA20010C-300AFLKA20025C-300AFLKA20010P-300AFLKA20025P-300AFL
    KA20010C-350AFLKA20025C-350AFLKA20010P-350AFLKA20025P-350AFL
    KA20010C-400AFLKA20025C-400AFLKA20010P-400AFLKA20025P-400AFL
    KA20010C-450AFLKA20025C-450AFLKA20010P-450AFLKA20025P-450AFL
    KA20010C-500AFLKA20025C-500AFLKA20010P-500AFLKA20025P-500AFL
    KA20010C-550AFLKA20025C-550AFLKA20010P-550AFLKA20025P-550AFL
    KA20010C-600AFLKA20025C-600AFLKA20010P-600AFLKA20025P-600AFL
    KA20010C-650AFLKA20025C-650AFLKA20010P-650AFLKA20025P-650AFL
    KA20010C-700AFLKA20025C-700AFLKA20010P-700AFLKA20025P-700AFL
    KA20010C-750AFLKA20025C-750AFLKA20010P-750AFLKA20025P-750AFL
    KA20010C-800AFLKA20025C-800AFLKA20010P-800AFLKA20025P-800AFL
    KA20010C-850AFLKA20025C-850AFLKA20010P-850AFLKA20025P-850AFL
    KA20010C-900AFLKA20025C-900AFLKA20010P-900AFLKA20025P-900AFL
    KA20010C-950AFLKA20025C-950AFLKA20010P-950AFLKA20025P-950AFL
    KA20010C-1000AFLKA20025C-1000AFLKA20010P-1000AFLKA20025P-1000AFL
    KA20010C-1050AFLKA20025C-1050AFLKA20010P-1050AFLKA20025P-1050AFL
    KA20010C-1100AFLKA20025C-1100AFLKA20010P-1100AFLKA20025P-1100AFL
    KA20010C-1150AFLKA20025C-1150AFLKA20010P-1150AFLKA20025P-1150AFL
    KA20010C-1200AFLKA20025C-1200AFLKA20010P-1200AFLKA20025P-1200AFL
    KA20010C-1250AFLKA20025C-1250AFLKA20010P-1250AFLKA20025P-1250AFL


    額定動負載

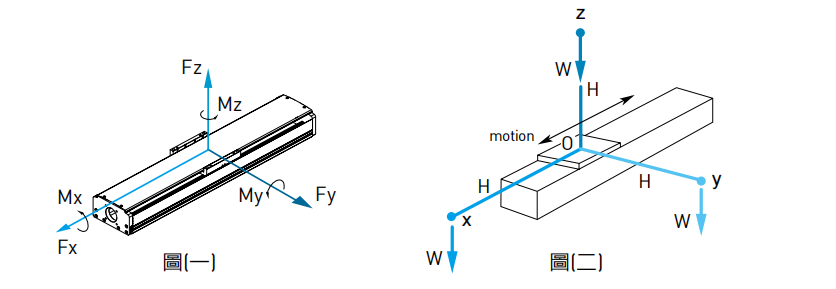

    额定动负载方向定义如图(一)所示。型录中表列额定动负载(Fy, Fz, Mx, My, Mz)是相对于KA行走10,000 Km的寿命,为确保KA长期使用,建议儘可能在表列负载范围内使用。

    图(二)中,负载作用位置为滑台安装平面的中心。但是,实际使用时负载重心的位置未必在此中心点上,如果离开中心太远可能引起振动、过大的力矩、或动作反应迟缓。

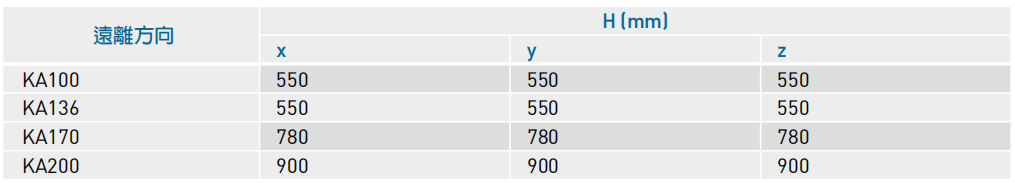

    为了避免这些不良现象,负载重心(W)远离滑台中心(O)的距离(H)请尽可能维持在下表范围内
