PTNES直线电机DA95-B2-T1200-D010-0.2
特征

高度:78mm

宽度:95mm

嵌入式直线电机

持续推力:147N

峰值推力:588N

最高限速:2m/s

光栅重复精度:±3um

磁栅重复精度:±5um

  • 基本信息

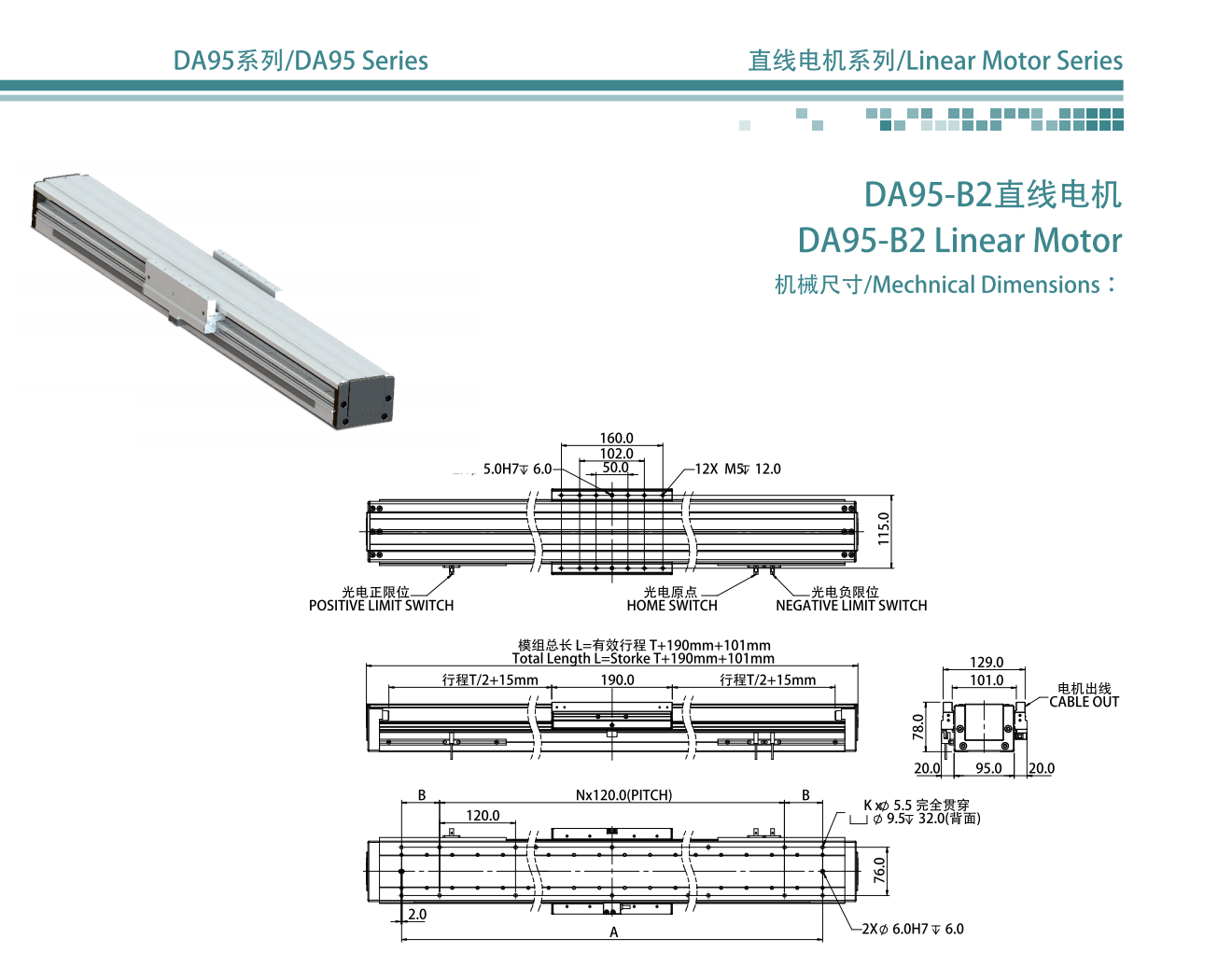

  • 规格尺寸

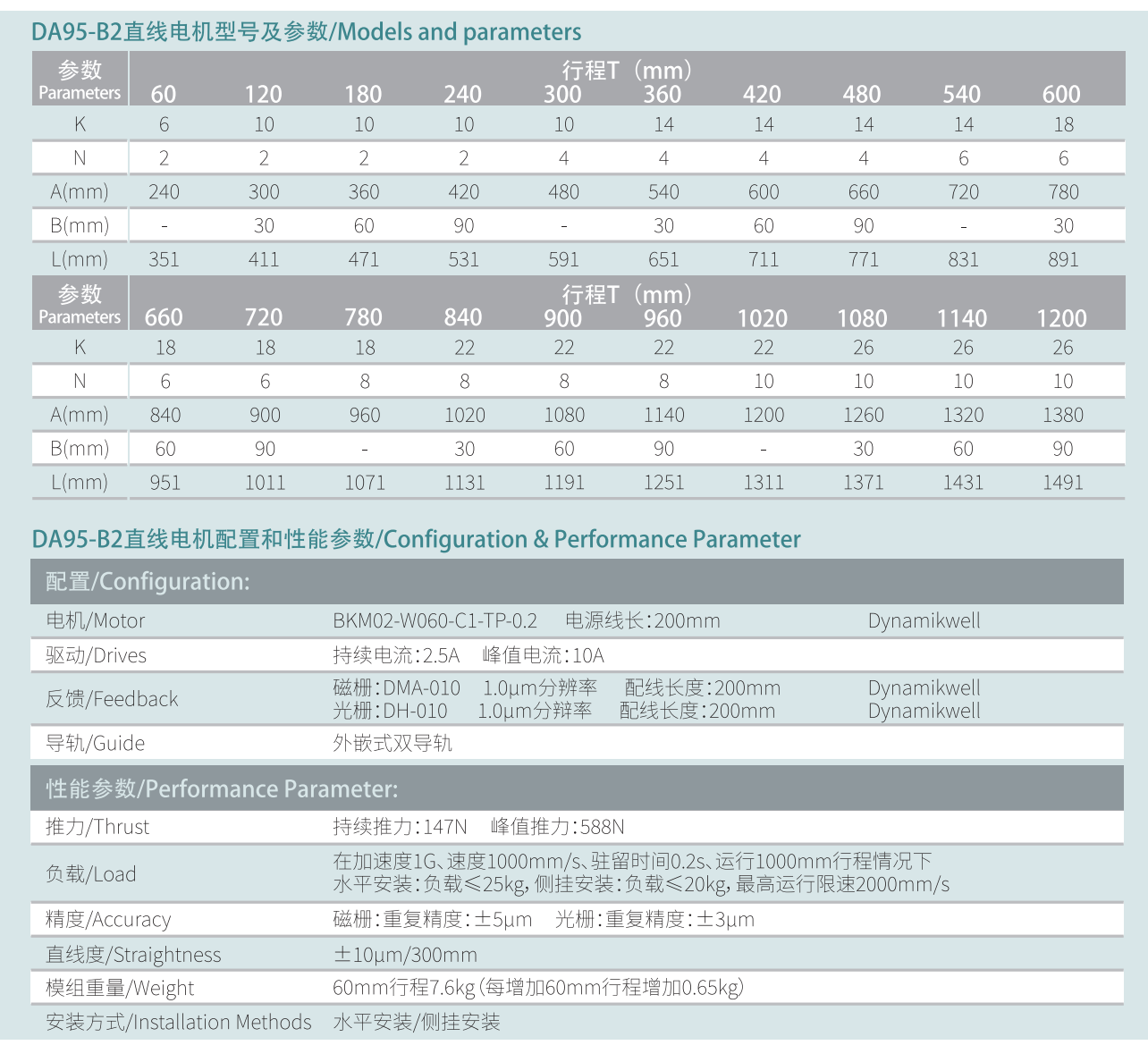

  • 配置/性能参数

    PTNES直线电机DA95-B2-T1200-D010-0.2

    特点:轻量化小型化直线电机标准产品;


    优势:全面替换丝杆模组+伺服电机,性价比更好;


    应用:已广泛应用于锂电,3C行业,检测行业,桌面式点胶机,锁螺丝机,焊锡机,上下料和搬运,摆盘机等。

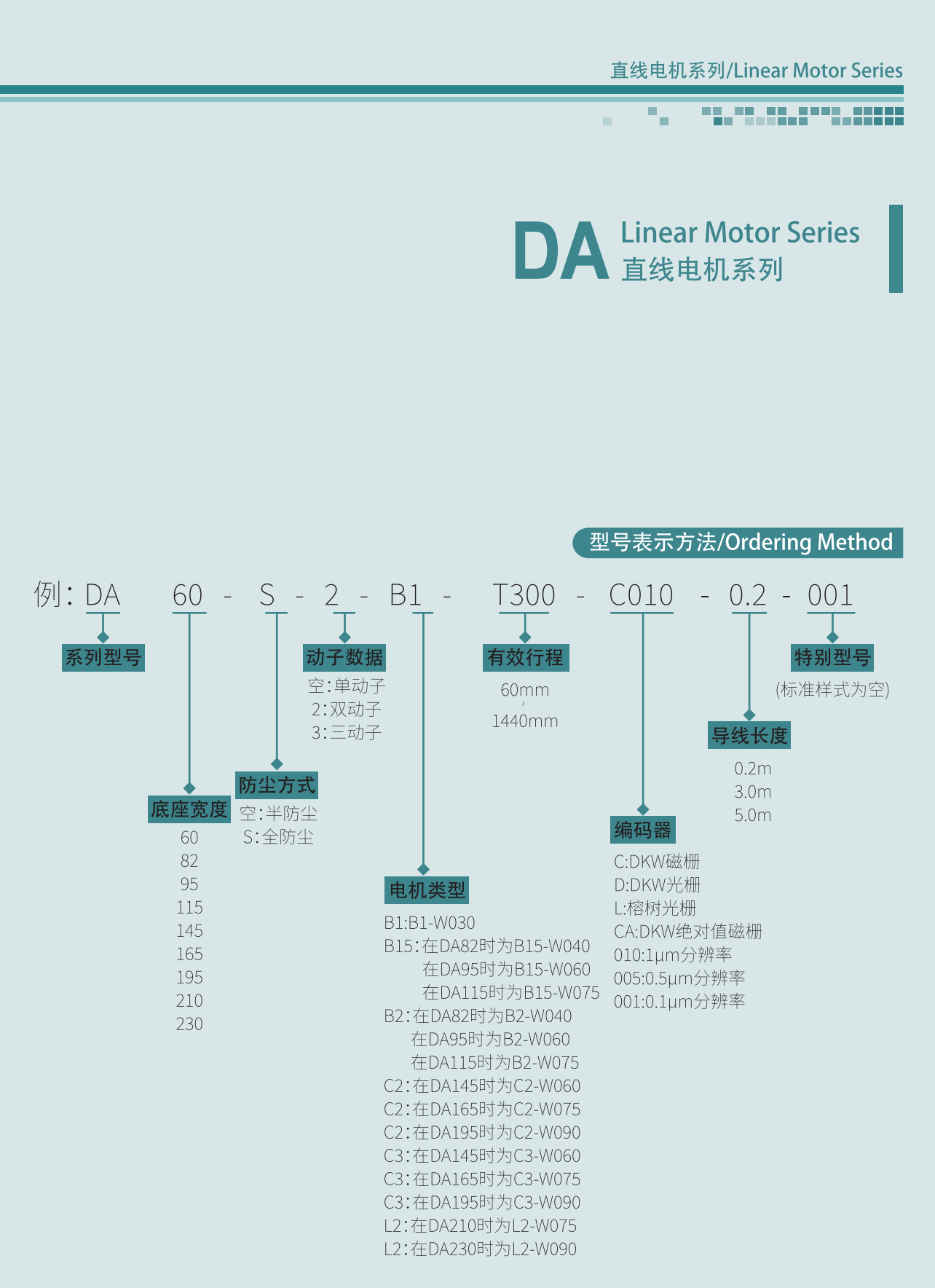

    DA95-B2磁栅反馈配置型号DA95-B2光栅反馈配置型号
    DA95-B2-T60-C010-0.2DA95-B2-T60-D010-0.2
    DA95-B2-T120-C010-0.2DA95-B2-T120-D010-0.2
    DA95-B2-T180-C010-0.2DA95-B2-T180-D010-0.2
    DA95-B2-T240-C010-0.2DA95-B2-T240-D010-0.2
    DA95-B2-T300-C010-0.2DA95-B2-T300-D010-0.2
    DA95-B2-T360-C010-0.2DA95-B2-T360-D010-0.2
    DA95-B2-T420-C010-0.2DA95-B2-T420-D010-0.2
    DA95-B2-T480-C010-0.2DA95-B2-T480-D010-0.2
    DA95-B2-T540-C010-0.2DA95-B2-T540-D010-0.2
    DA95-B2-T600-C010-0.2DA95-B2-T600-D010-0.2
    DA95-B2-T660-C010-0.2DA95-B2-T660-D010-0.2
    DA95-B2-T720-C010-0.2DA95-B2-T720-D010-0.2
    DA95-B2-T780-C010-0.2DA95-B2-T780-D010-0.2
    DA95-B2-T840-C010-0.2DA95-B2-T840-D010-0.2
    DA95-B2-T900-C010-0.2DA95-B2-T900-D010-0.2
    DA95-B2-T960-C010-0.2DA95-B2-T960-D010-0.2
    DA95-B2-T1020-C010-0.2DA95-B2-T1020-D010-0.2
    DA95-B2-T1080-C010-0.2DA95-B2-T1080-D010-0.2
    DA95-B2-T1140-C010-0.2DA95-B2-T1140-D010-0.2
    DA95-B2-T1200-C010-0.2

    DA95-B2-T1200-D010-0.2


    PTNES直线电机DA95-B2-T1200-D010-0.2


    PTNES直线电机DA95-B2-T1200-D010-0.2
